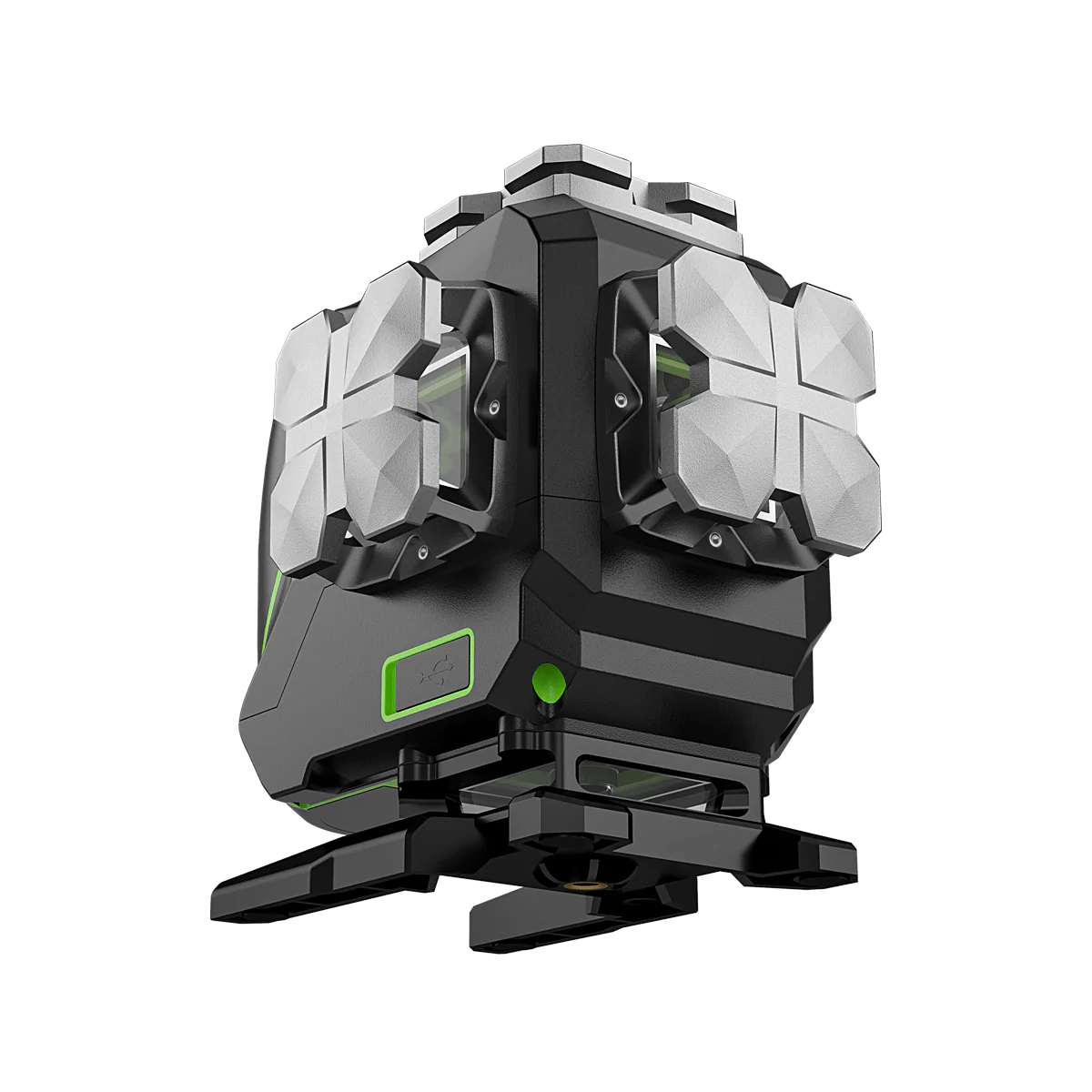

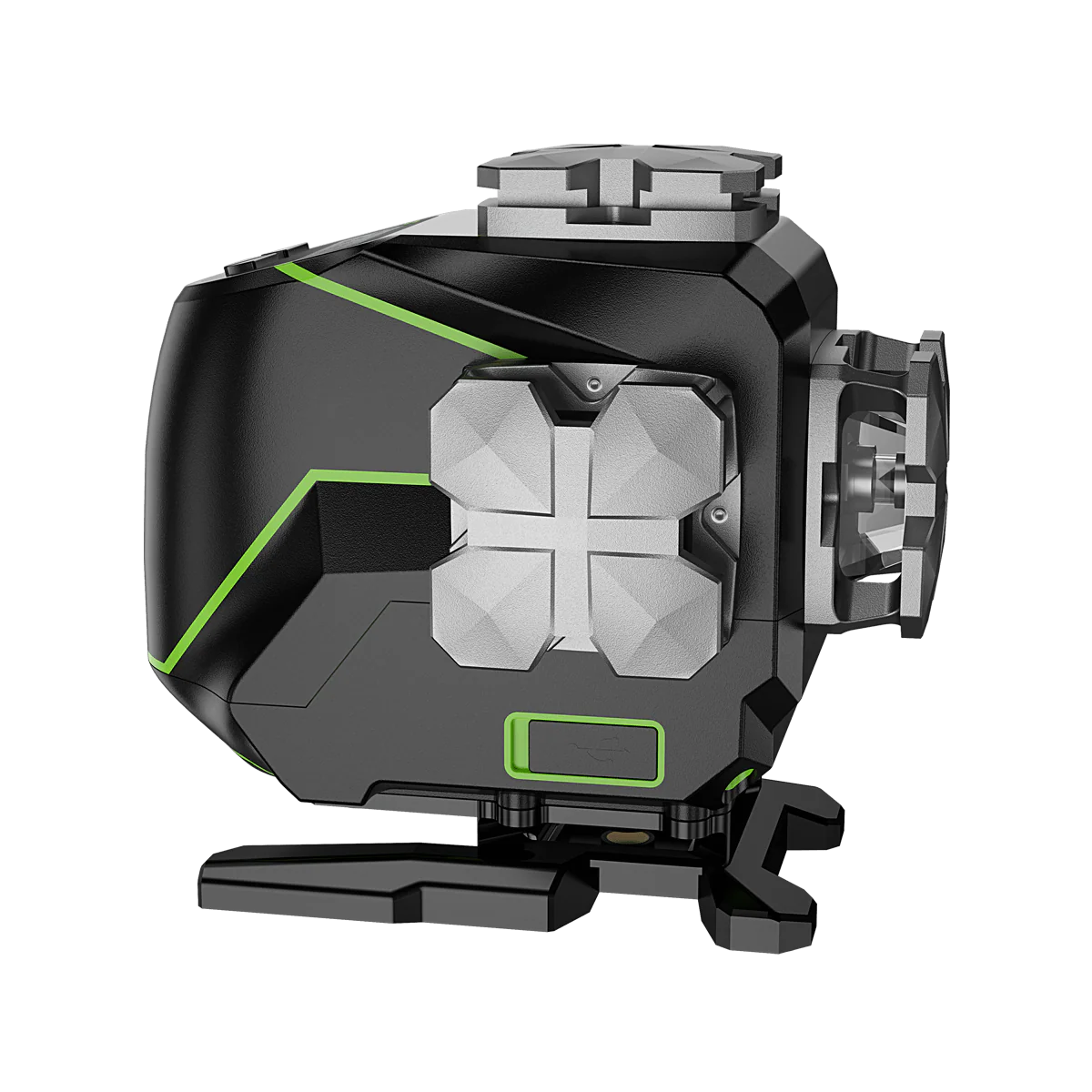

Huepar S03DG Laser Level
Ā
-

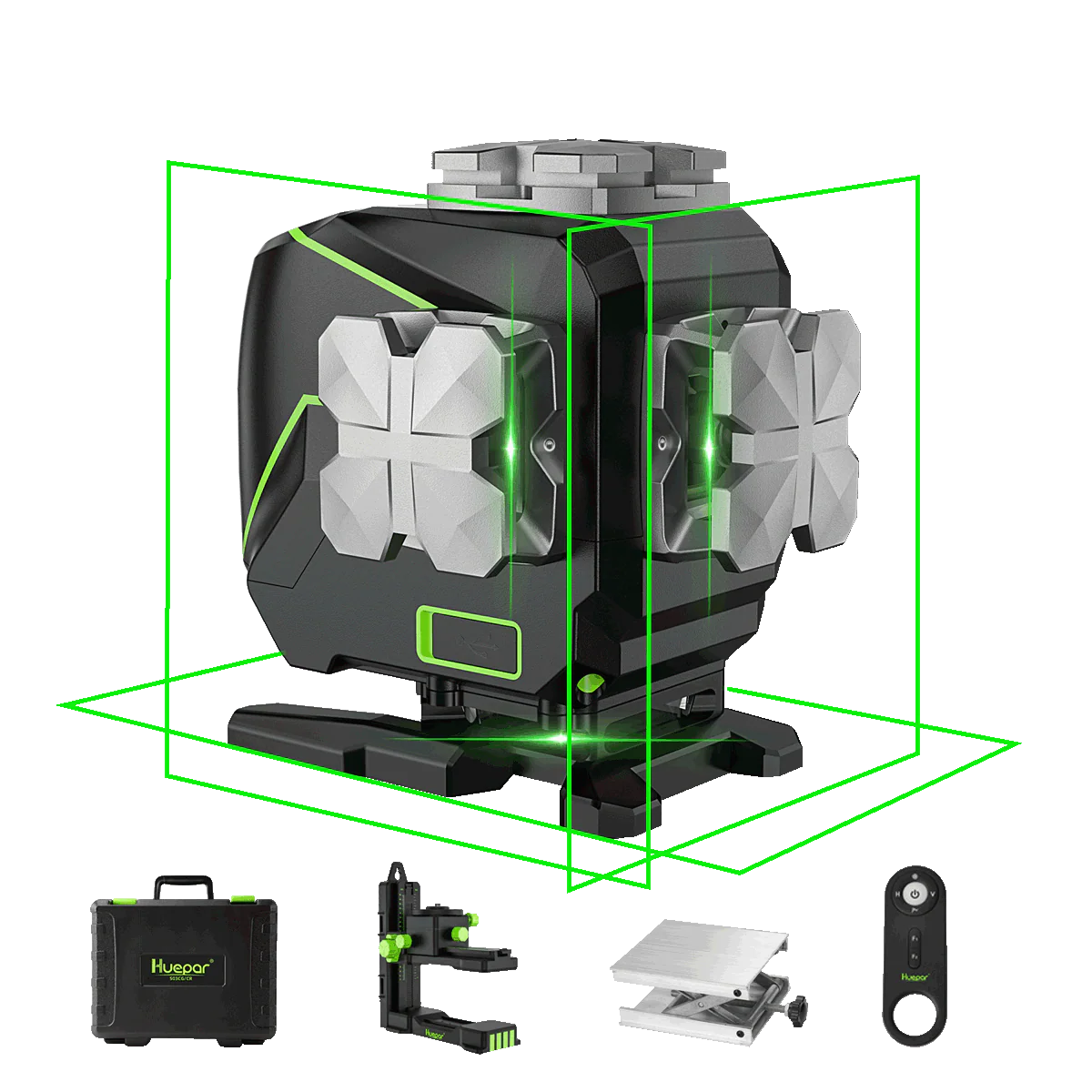

3 x 360Ā° WITH FLOOR LINE LASER: This laser tool projects one 360Ā° horizontal floor laser line for tiling installation. With the lifting base, the 360Ā° floor laser can raise from the surface to project over and travel past uneven surfaces or obstructions between 1" and 3.54" height. Two vertical lines cross at 90Ā°angles makes user quickly visualize and finish square layout. This 3 x 360 laser level is a complete tool for covering the floor, wall, ceiling all around the room.
-
LCD DISPLAY & BLUETOOTH TECH: The laser level has LCD screen to easily get the status of the battery, angle, pendulum and pulse mode on the display. Bluetooth connectivity enables to control the setup of the laser from across the room with Huepar App on smart phone and remote control. The App and remote control can switch ON/OFF the laser lines and pulse mode, select the laser planes. Huepar App also provides out-of-level alarm. The laser tool can connect two Bluetooth devices simultaneously.
-
TRIPLE POWER METHODS&TYPE-C PORT: This 360 laser tool adopted large capacity Li-ion battery (can be purchased easily at local market) for extended run-time, or with 4 AA alkaline batteries. The Li-ion battery has a Type-C charging port to be charged separately and can also be charged by phone, laptop, power bank, car charger, etc. The included battery holder is for installingĀ 4 AA batteriesĀ to use the tool. The laser tool can be used at job site by plugged in when taking out the battery.Ā
-
MULTIFUNCTIONAL LASER TOOL: The three 360Ā° laser planes can be selected individually by separate H and V button on the keypad. With smart pendulum, the laser tool self levels and indicates out-of-level condition while pendulum unlocked. The line laser will beep when out of self-leveling range Ā±3.5Ā°. Once pendulum locked, it switches to manual mode to lock lines for use at any angle. Pulse mode extends laser range up to 200Ft. with Huepar Laser Receiver LR-6RG/LR-5RG.
-
MAGNETIC BRACKET&DURABLE DESIGN: Strong magnetic bracket allows for quick positioning to metal surfaces. And the 1/4"-20 & 5/8"-11 mounting threads on the bracket enable to mounted to different tripod threads.Ā The laser tool also has a 1/4"-20 mount thread to suit a tripod or pole mount. IP54 water/dust resistance can withstand tough job site conditions. The kit has a hard carry case bringing much more convenience to carry and store the laser tool.Ā
Lines Switching&Bluetooth Technology
- Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.
- The Bluetooth remote control / Huepar APP enables to select three 360Ā° laser lines individually at a distance up to 98Ft.
- The laser line(s) can be temporarily turned OFF by the remote control/Huepar APP when need to leave for a while.
- In manual mode, when all laser lines are switched off, the laser tool will shut OFF automatically after about 5 minutes of inactivity.
- The laser tool can connect two Bluetooth devices simultaneously. It can connect two Bluetooth remote controls, or two smart phones(whether on Android or iOS), or one Bluetooth remote control and one smart phone at the same time.
Ā

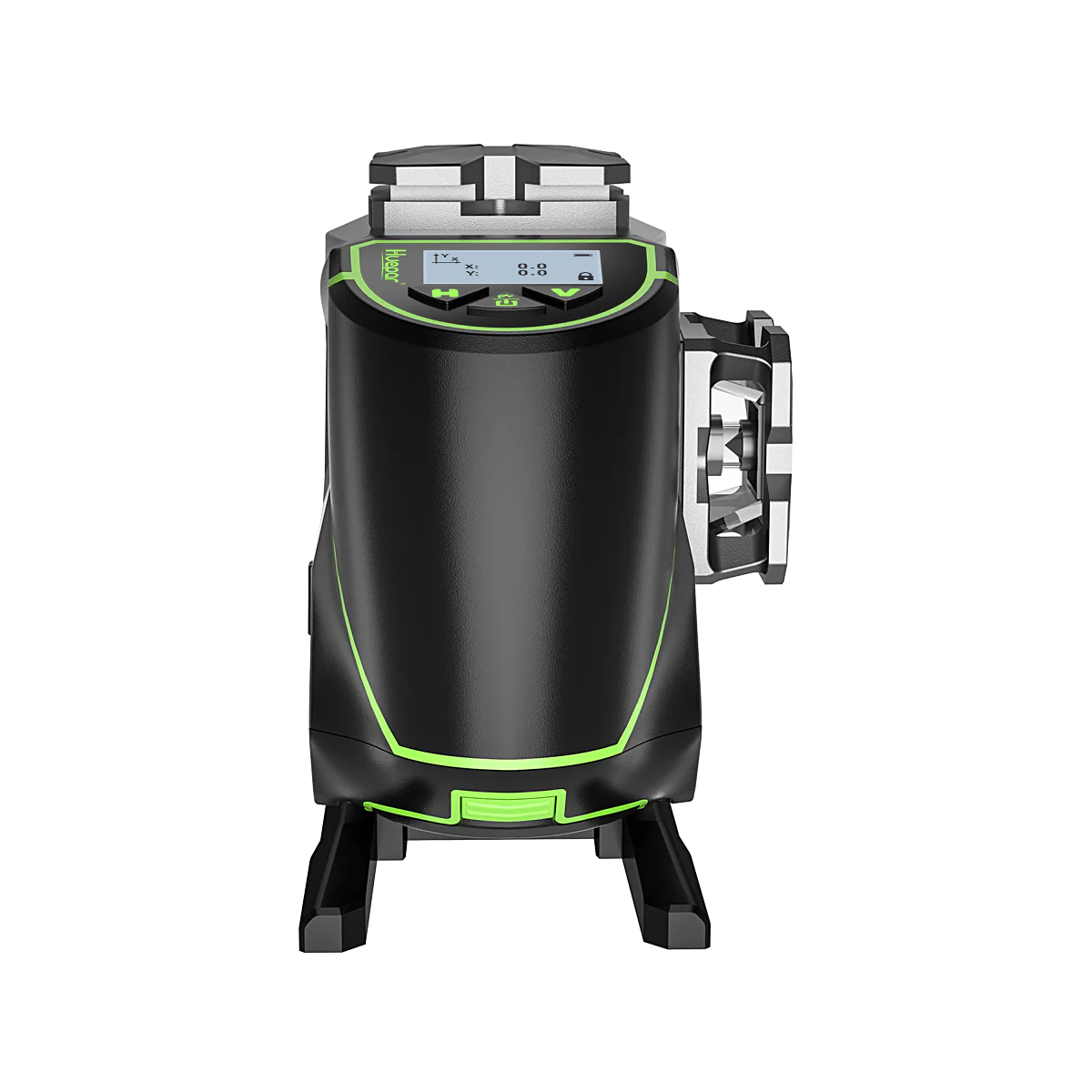

LCD Screen Display
- Huepar S03DG laser level has LCD screen to easily get the status of the battery, angle, pendulum and pulse mode on the display.
- Icons on LCD screen: battery level, pendulum locked&unlocked status, X axis tilt angle, Y axis tilt angle, X/Y axis tilt direction, pulse mode.
360Ā° Horizontal Tiling Laser&Lifting Base
- Huepar S03DG floor laser tool generates one 360Ā°horizontal tiling laser on the floor or wall providing all-around leveling coverage for the layout of tile, stone, brick, carpet and hardwood flooring.
- With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions between 1" and 3.54" height.
Pulse Mode
- After power on, short press the power button to switch ON/OFF the pulse mode.
- When connecting with Huepar APP and the Bluetooth Remote Control, the pulse mode can be switched ON/OFF via APP and remote control.
- Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.
- It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.
- Note: Keep the pulse mode on when using with a receiver.
Ā
Self-leveling mode:
- Once the pendulum unlocked, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range Ā±3.5Ā°.
- With Bluetooth Tech, the locked icon will be displayed on Huepar APP and LCD screen.
Manual mode:
- When the pendulum is in the locked position, the laser tool can be placed for use at any angle.
- The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.
- With Bluetooth Tech
Ā Ā
Triple Power Methods
- This laser tool utilizes the included large capacity Li-ion battery which is compatible with Samsung SB-L110 battery.
- The Li-ion battery comes with type-c charging port that can be charged by laptop, power bank, car charger, etc.
- Huepar 360 laser level also comes with a holder for installing 4 AA batteries to use the tool.
- The 12 lines laser level can be used at the work site by plugged in directly when taking out the battery.
Ā Ā
Ā
- Equipped with a magnetic pivoting bracket, the laser tool can be rotated at 360Ā° randomly.
- The fine-tuning knobs on the bracket enable adjustment of the left and right position, front and back position within 2.16 in (5.5cm) , can also help adjust and lock the height within 3.74 in (9.5cm).
- The graduations in both Inch and Metric on the bracket make the adjustment much easier.
- The magnetic bracket offers 1/4"-20 and 5/8"-11 mounting threads to suit different tripod threads.
- The laser tool also has 1/4"-20 mounting thread to suit for standard tripods or pole mounts.
Ā Ā
Ā

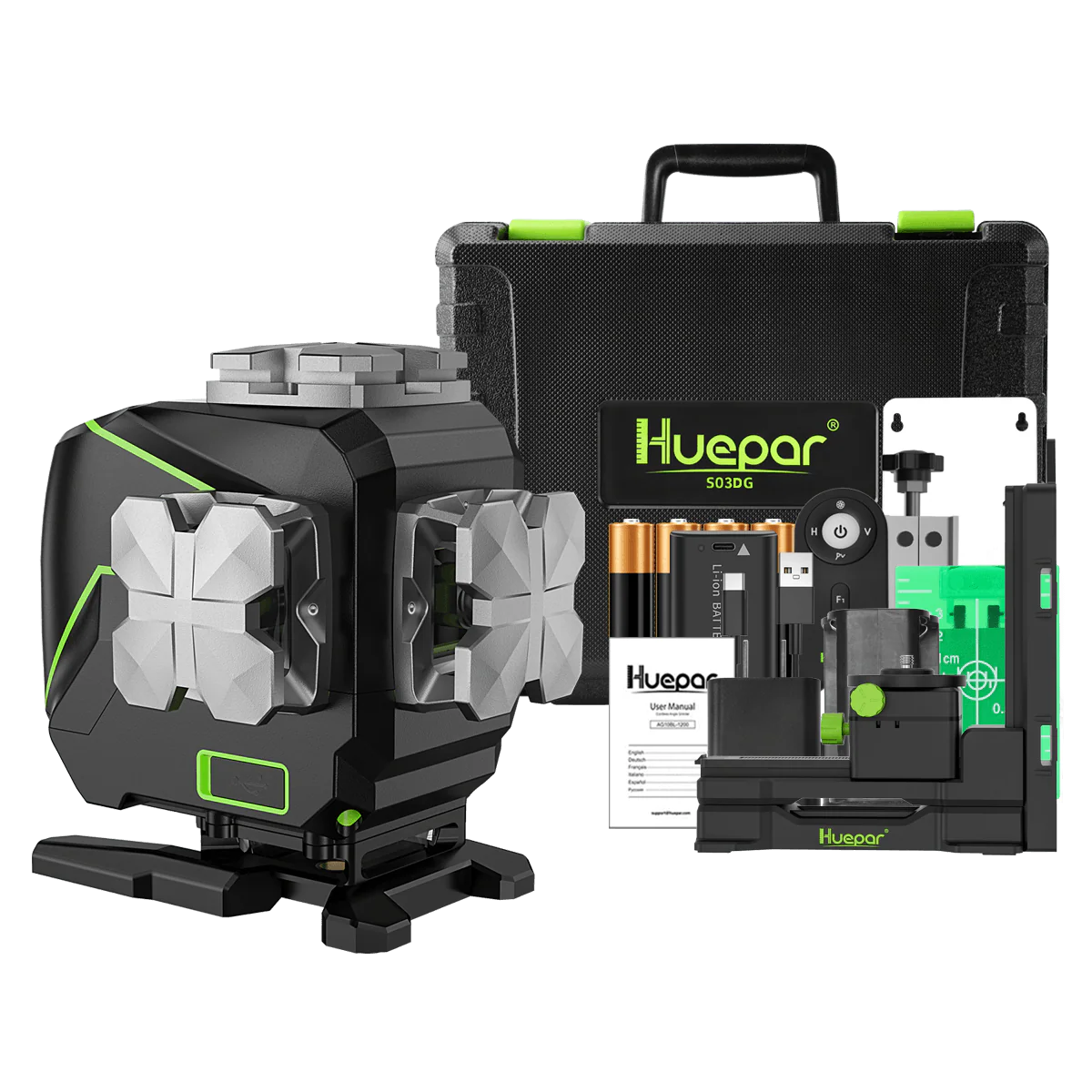

Package Contents:
- 1 x 3D Green Tiling Laser Level with LCD screen S03DG
- 1 x Bluetooth Remote Control
- 1 x Rechargeable Li-ion Battery
- 1 x Power Adapter&1 x Type-C cord
- 4 x AA (LR6) Batteries & 1 x AA Battery Holder
- 1 x Magnetic Bracket&1 x Steel Sheet
- 1 x Lifting Base
- 1 x Laser Target Plate
- 1 x Lase Level User Manual
- 1 x Hard Carry Case
